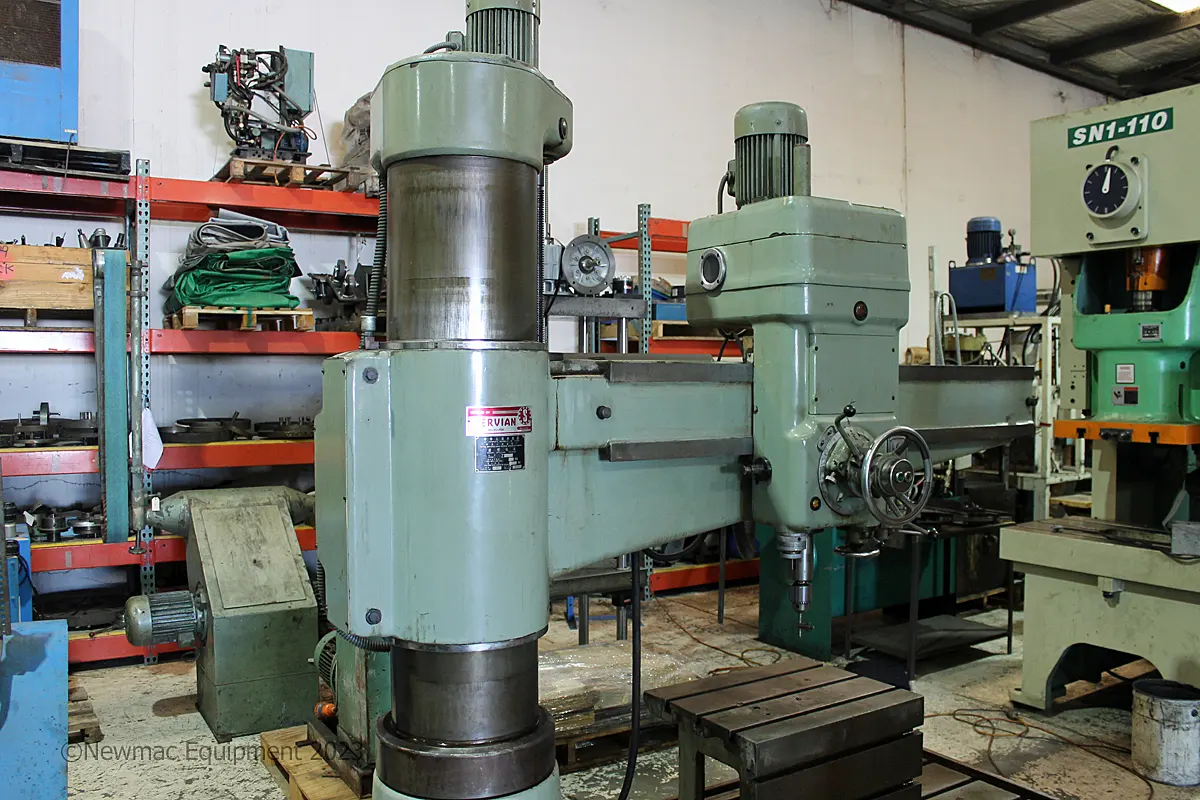

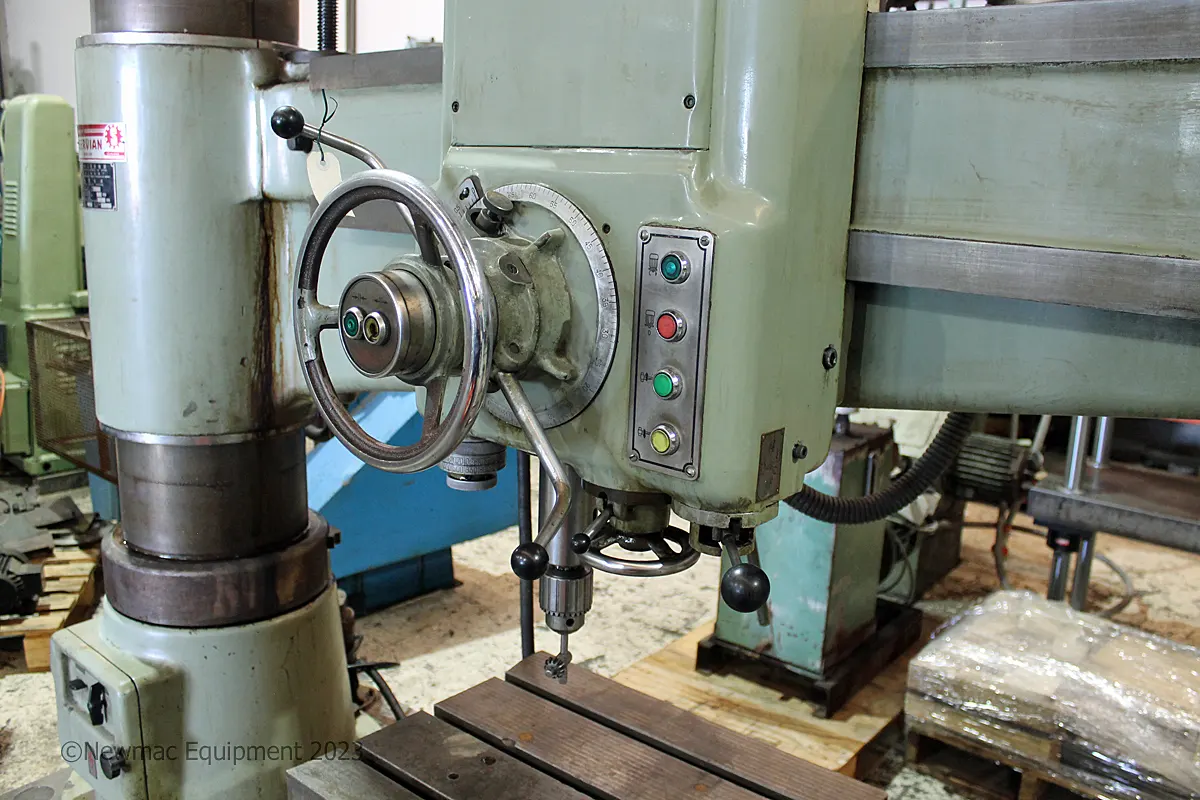

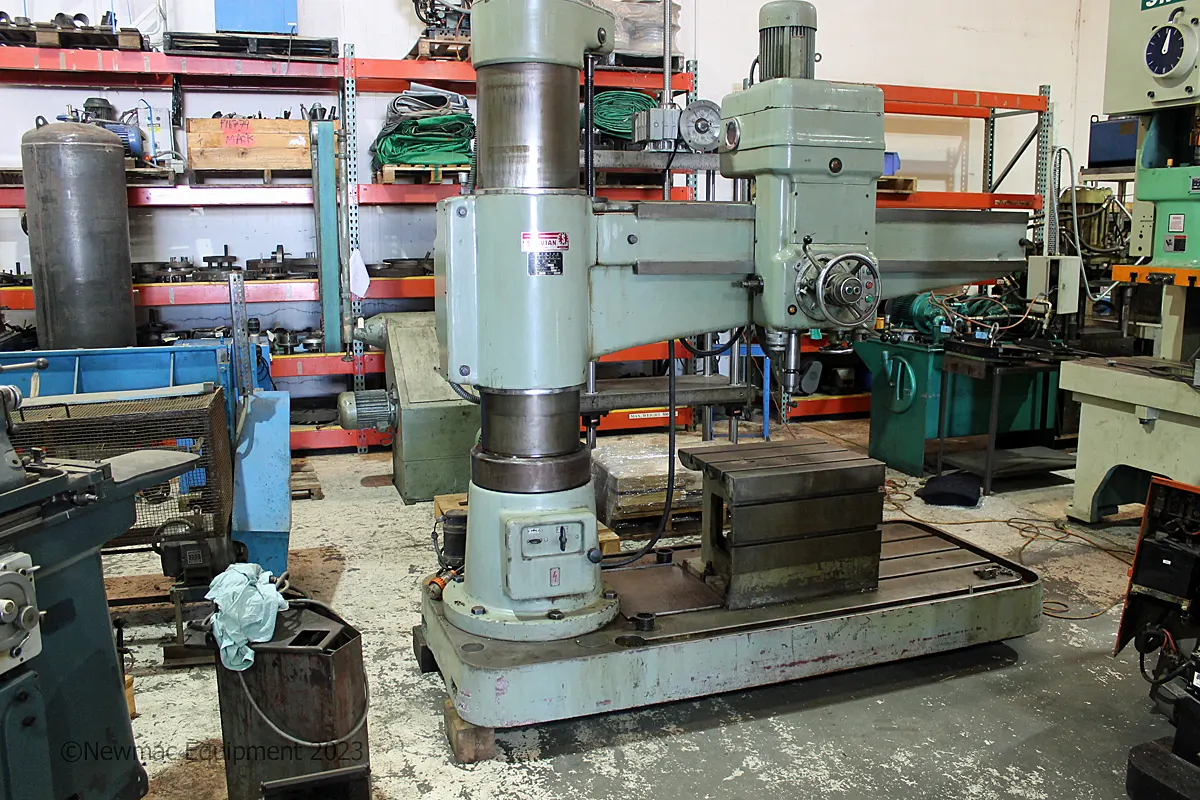

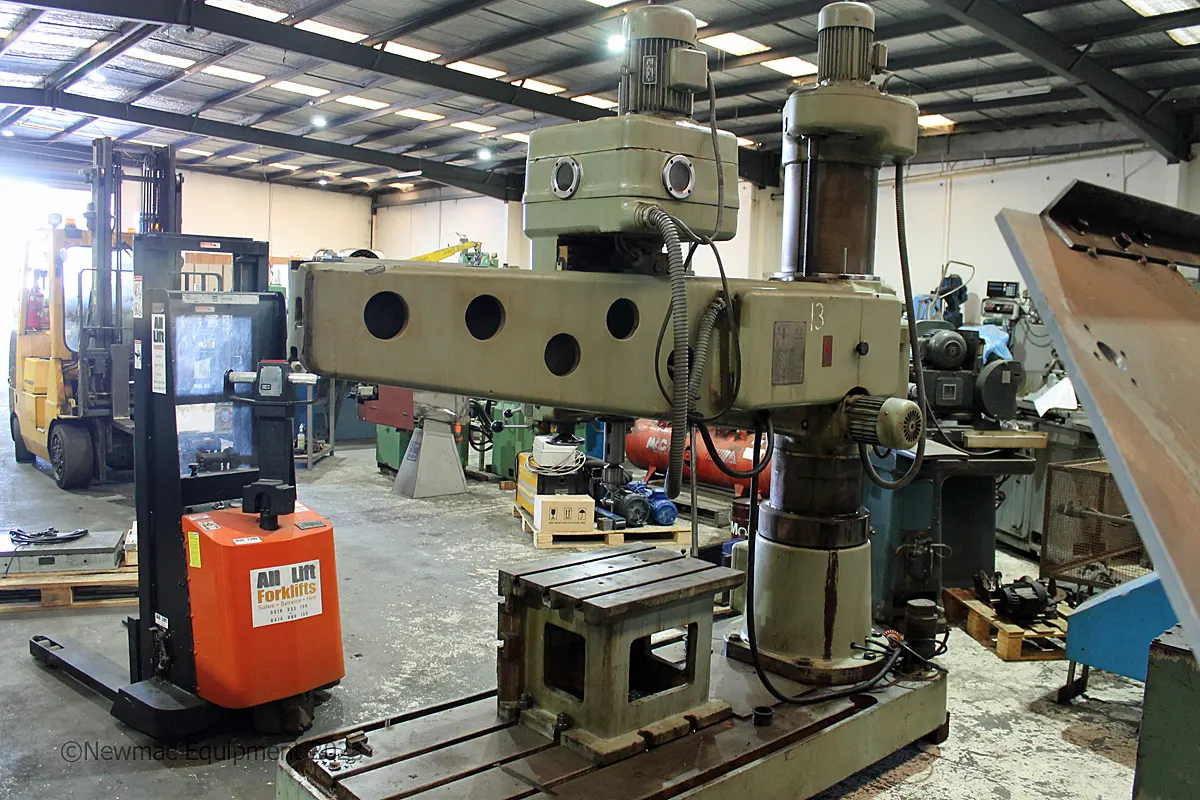

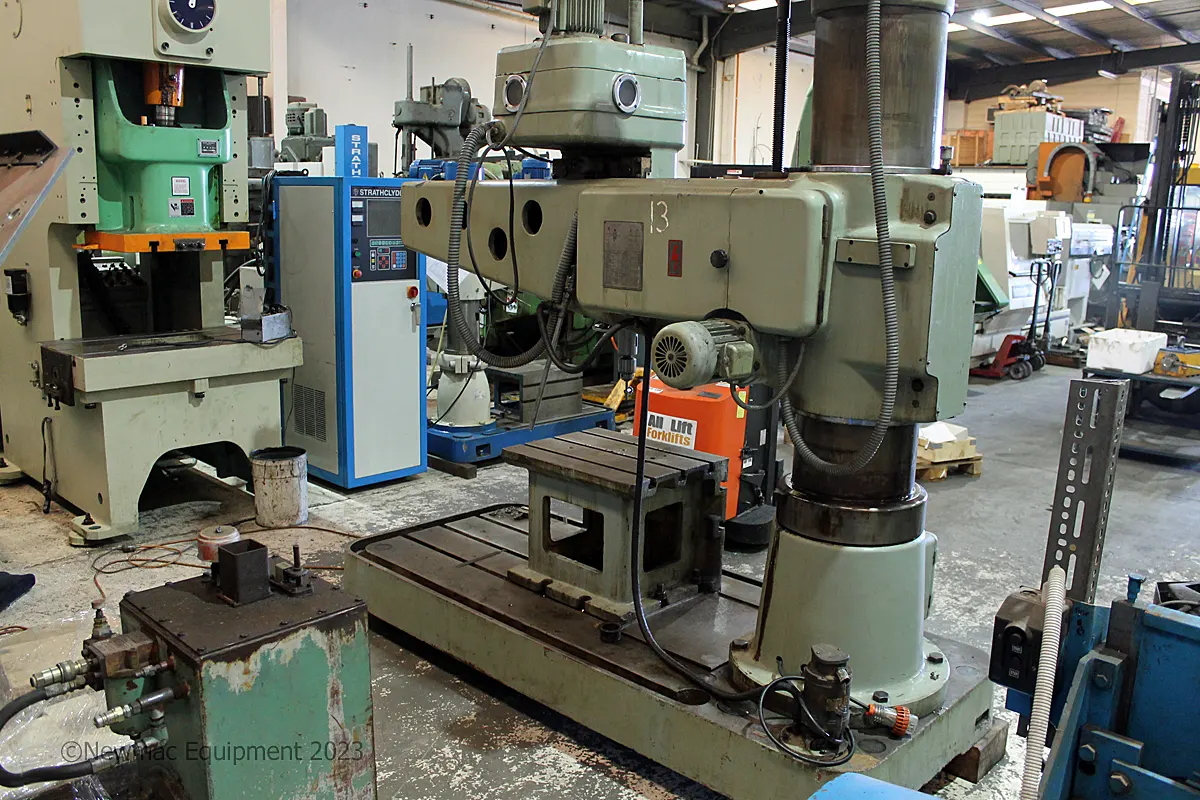

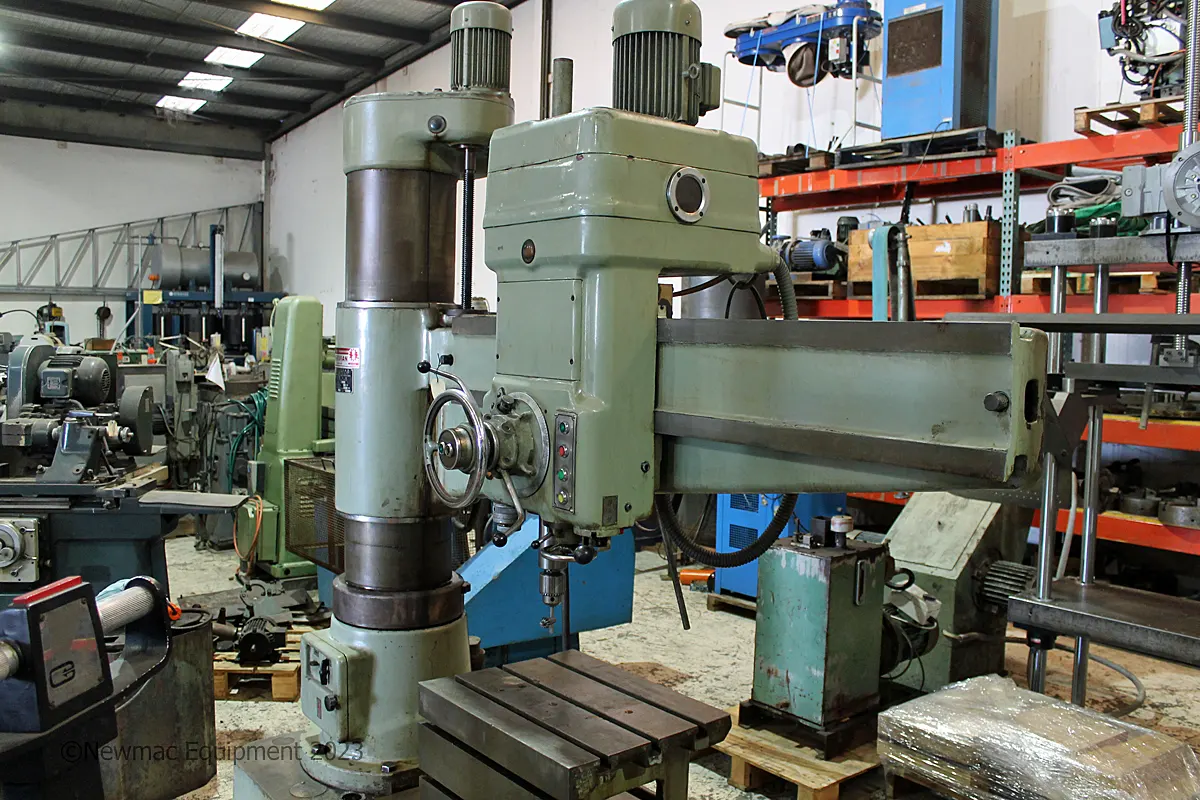

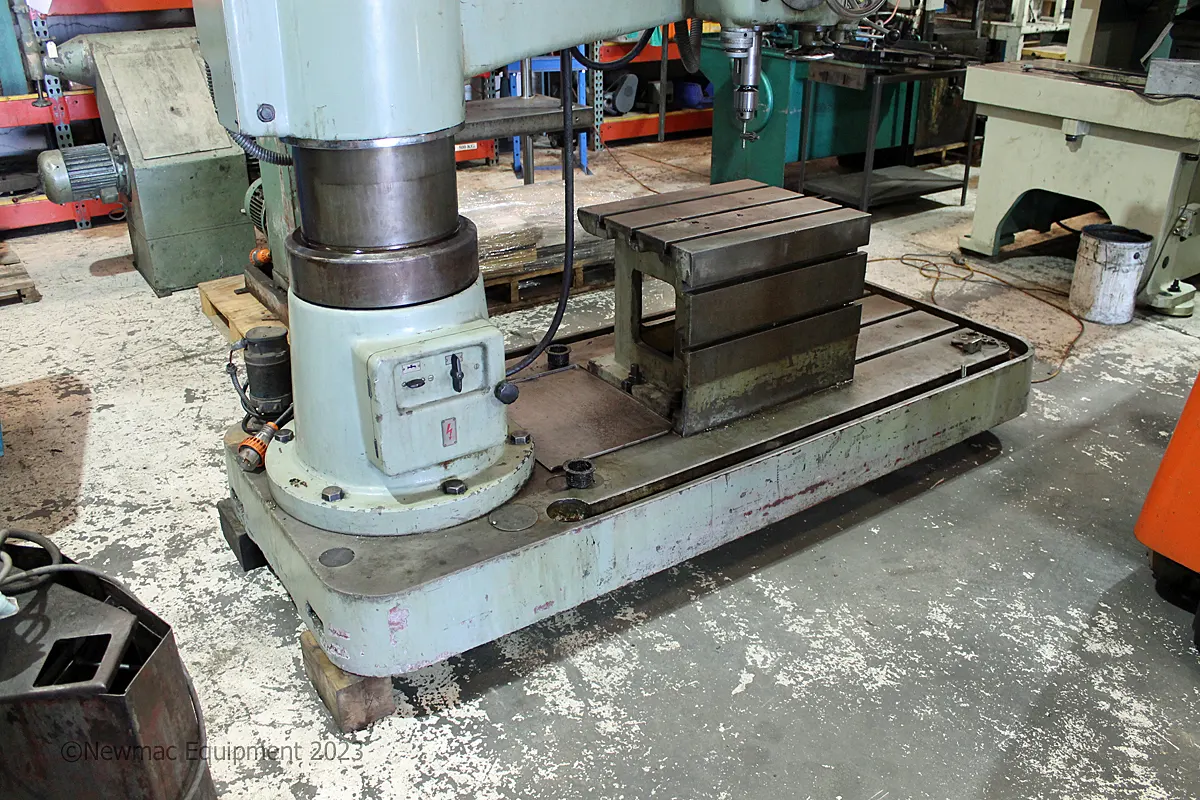

We have a Servian Z3040 x 16 radial arm drilling machine for sale.
Stock # 4045
Specifications are as follows

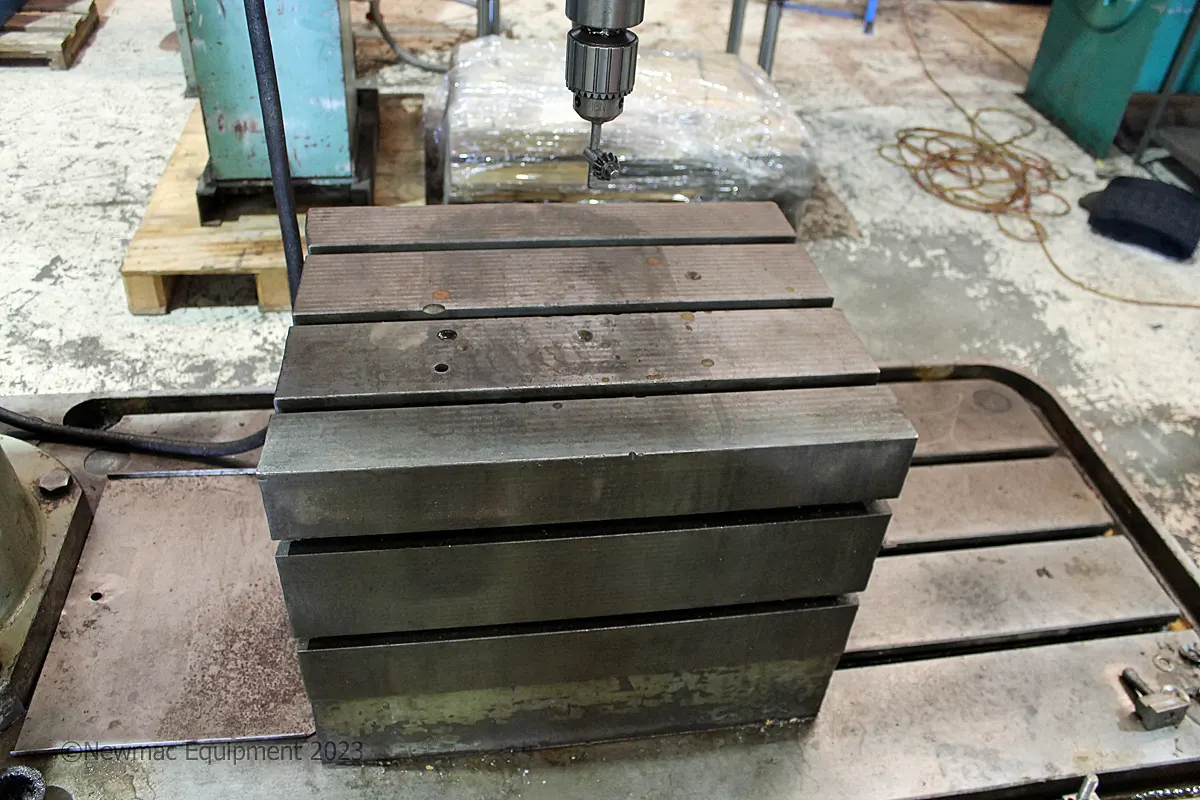

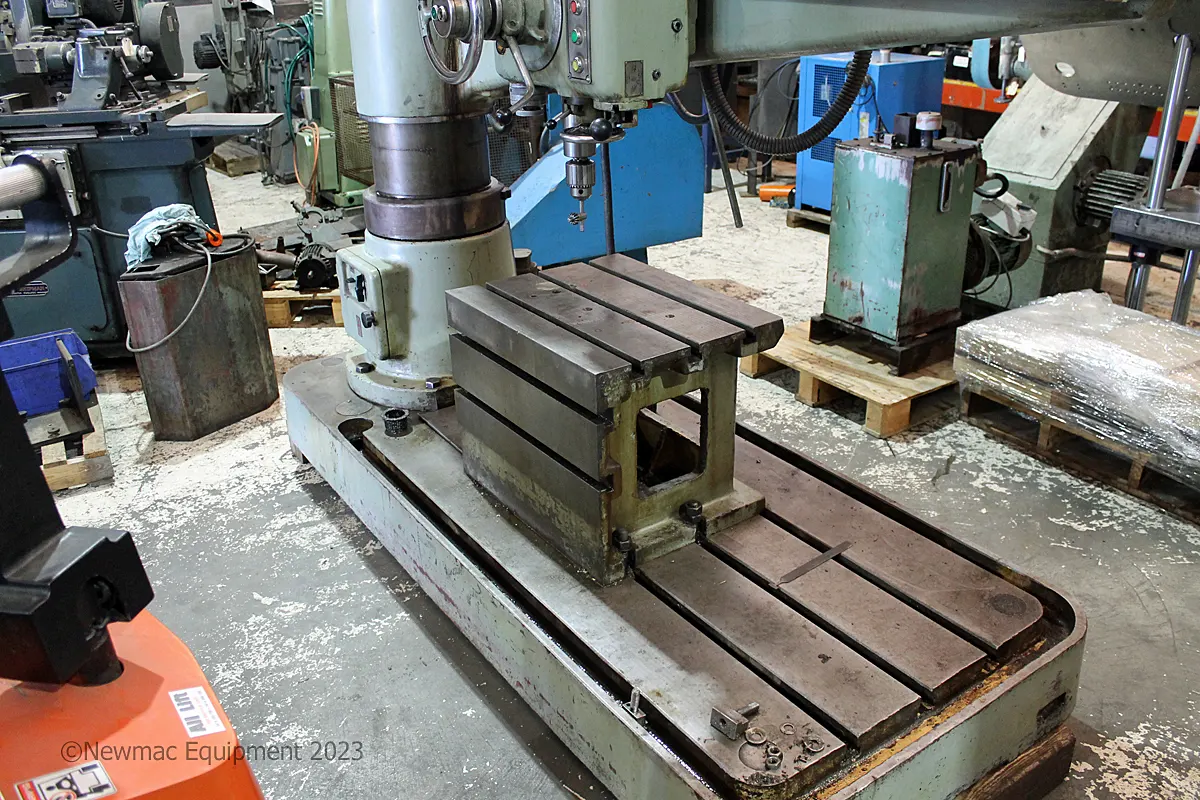

- Box table size 640mm x 510mm x 500mm high
- Max drilling capacity in mild steel 40mm
- Distance from centre of the spindle to the column Max 1600, Min 350mm
- Distance from base plate to spindle nose Max 1250mm, Min 350mm
- Distance from table to spindle nose Max 750mm,Spindle Speeds 25 to 2000 rpm
- Feeds 16 automatic feed rates
- Morse taper # 4
- Quill travel 315mm
- Motor Hp/Kw 4hp / 3kw
- Power requirements 3 phase, 415 volt
- Overall dimensions for transport, with arm lowered 2.5m x 1m x 2.65m high
- Weight 3.5 tons
Please click here for printable pdf & price (opens in new tab)
Testing of Machinery – Try Before You Buy
We are happy to test-run machinery in our warehouse, that way it gives you peace of mind that the machine will do your job prior to purchase.
This machine is in our warehouse so feel free to pop in to inspect the machine at your convenience or give us a ring on 03 9720 3922 for more information.
