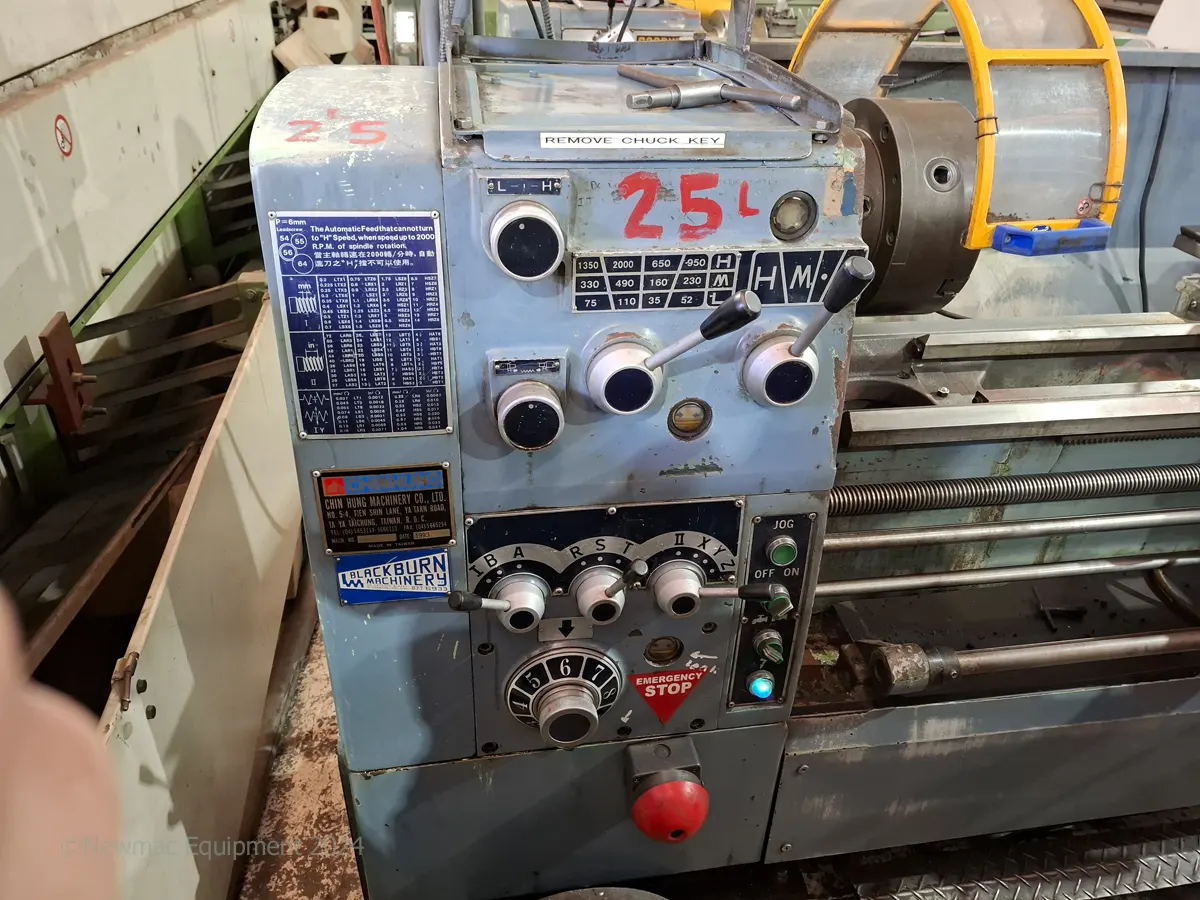

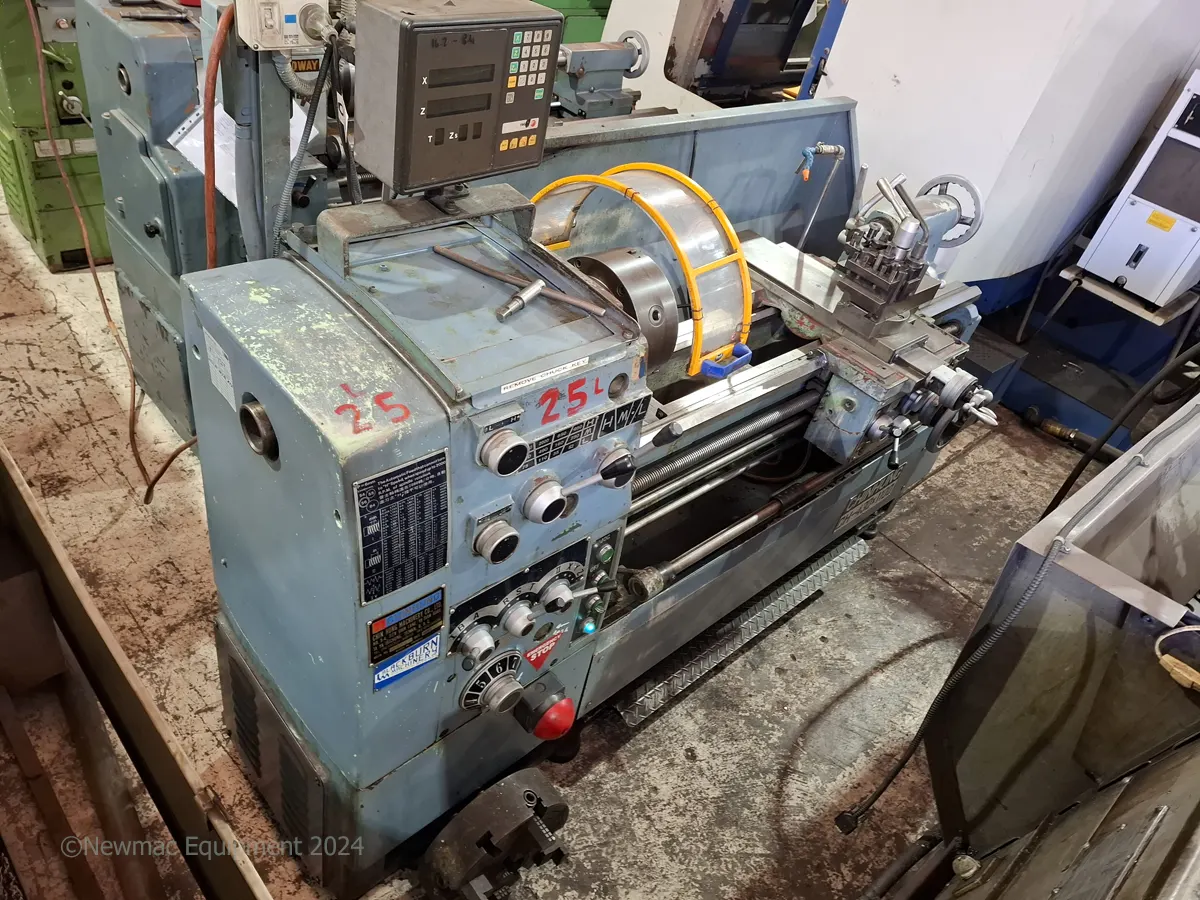

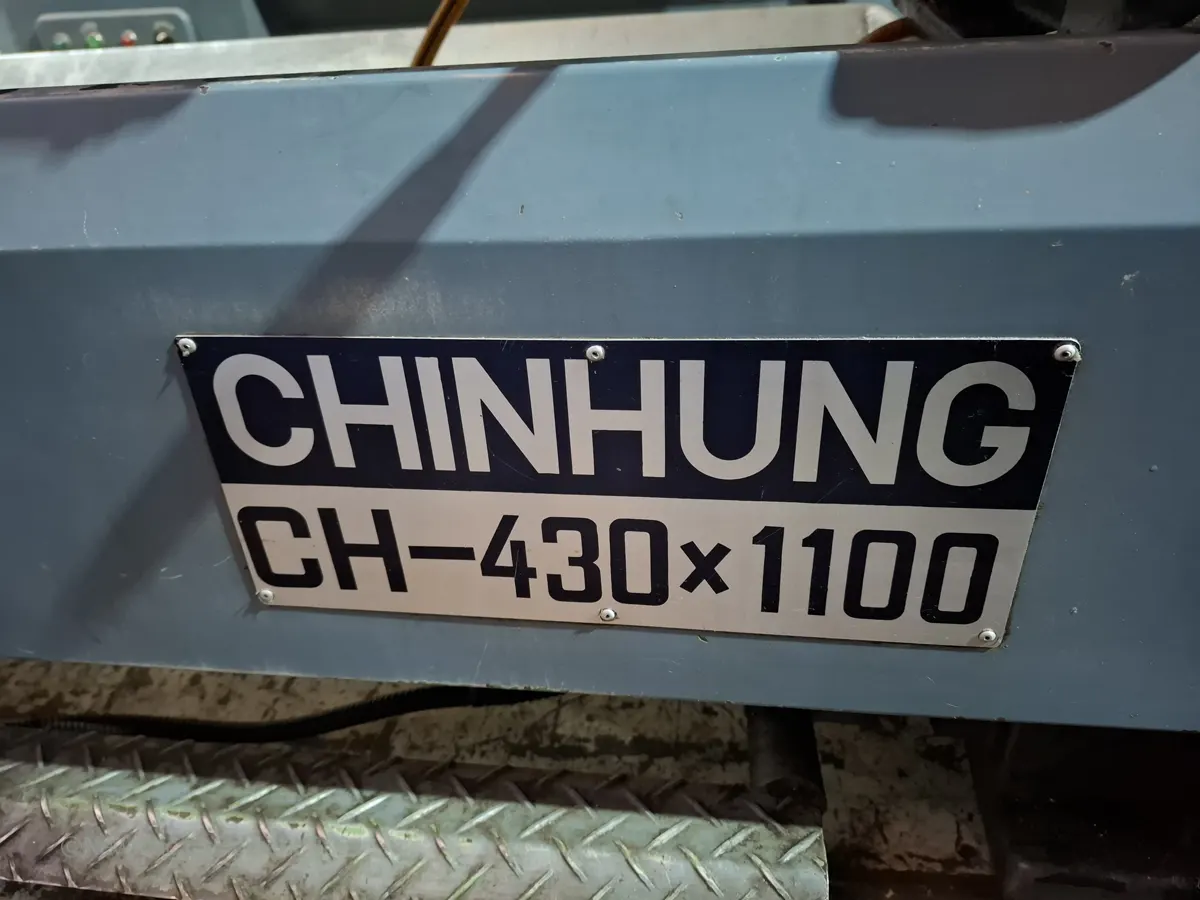

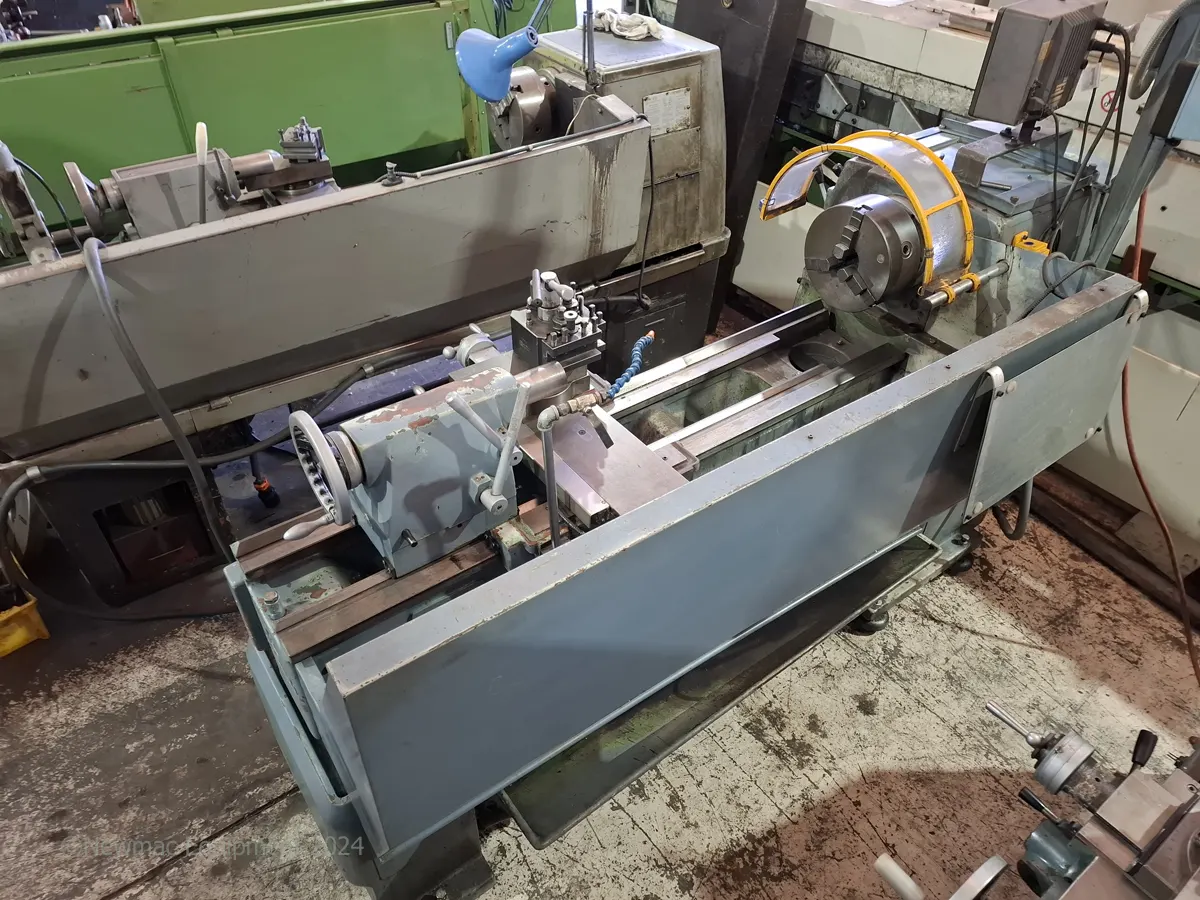

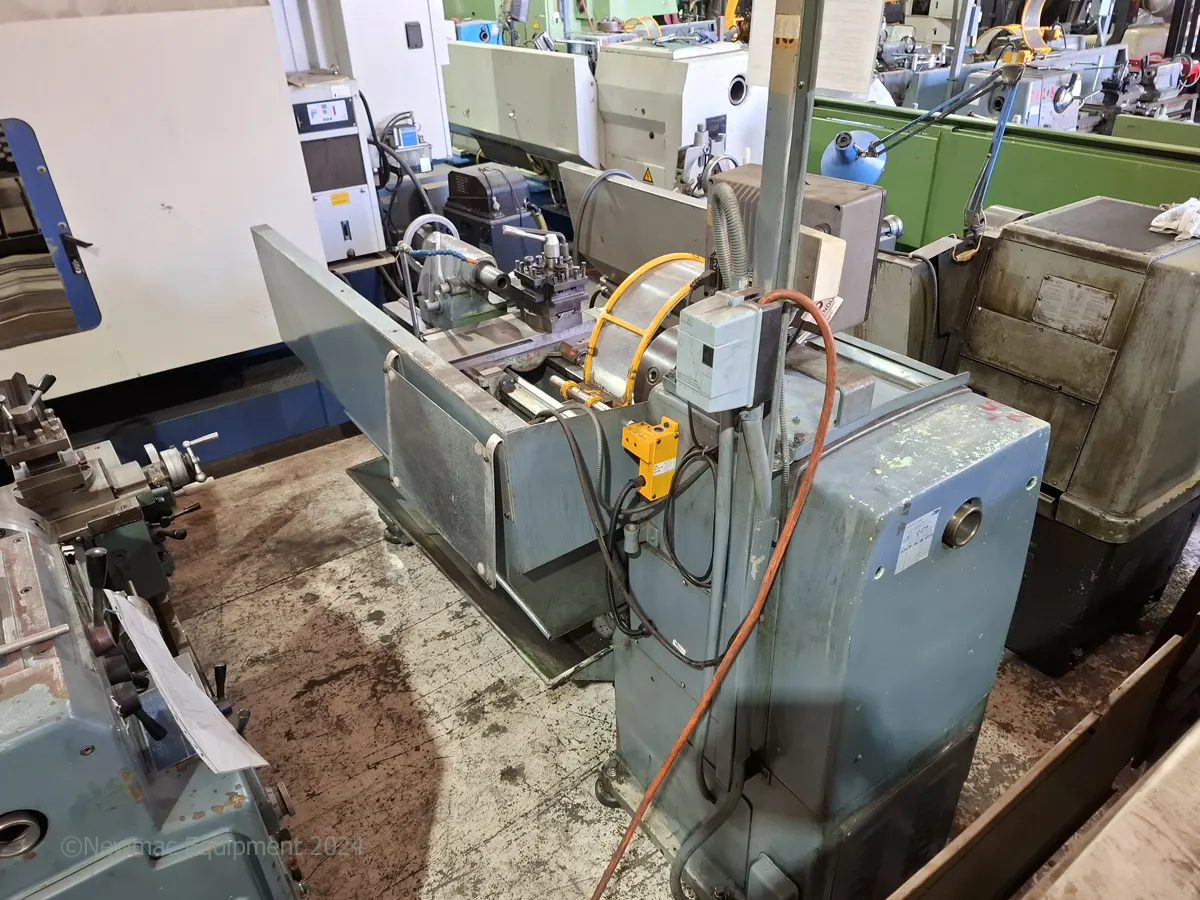

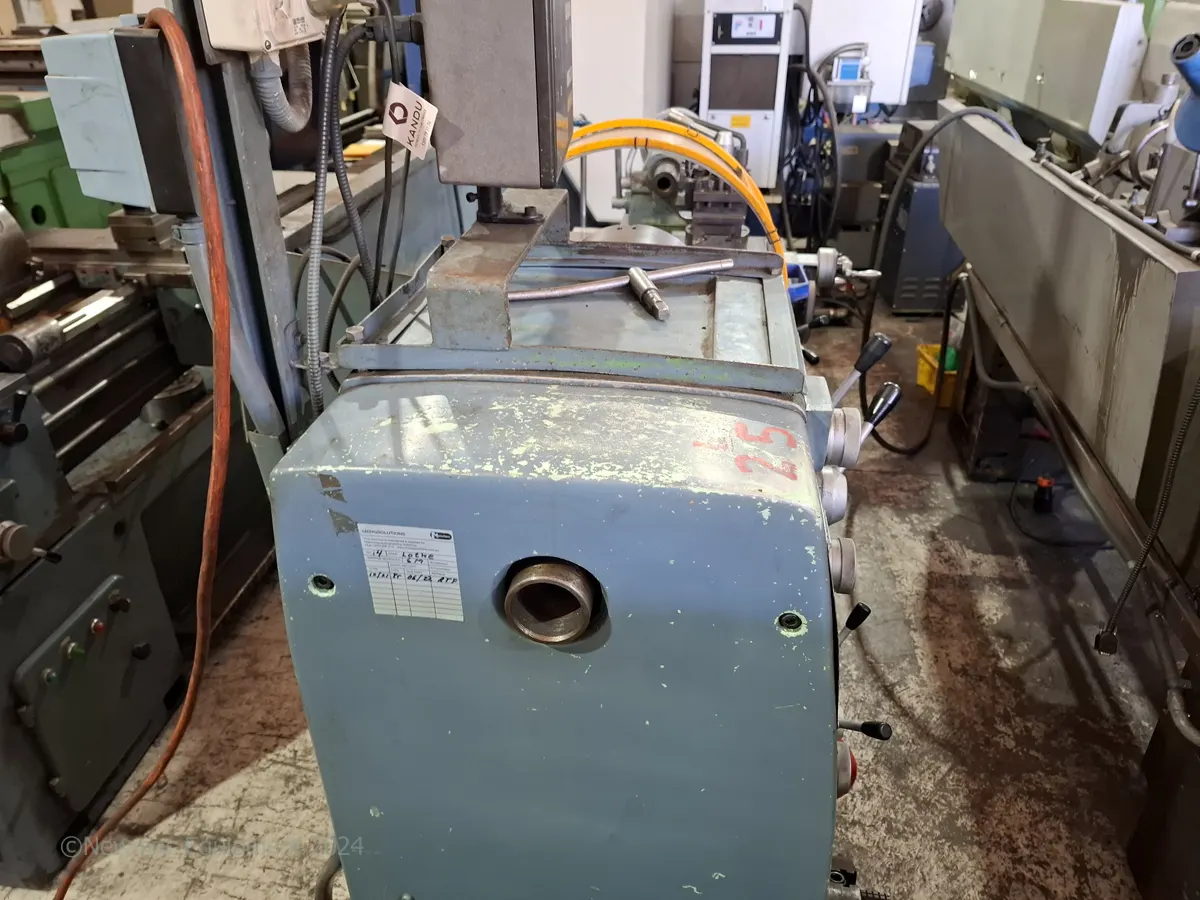

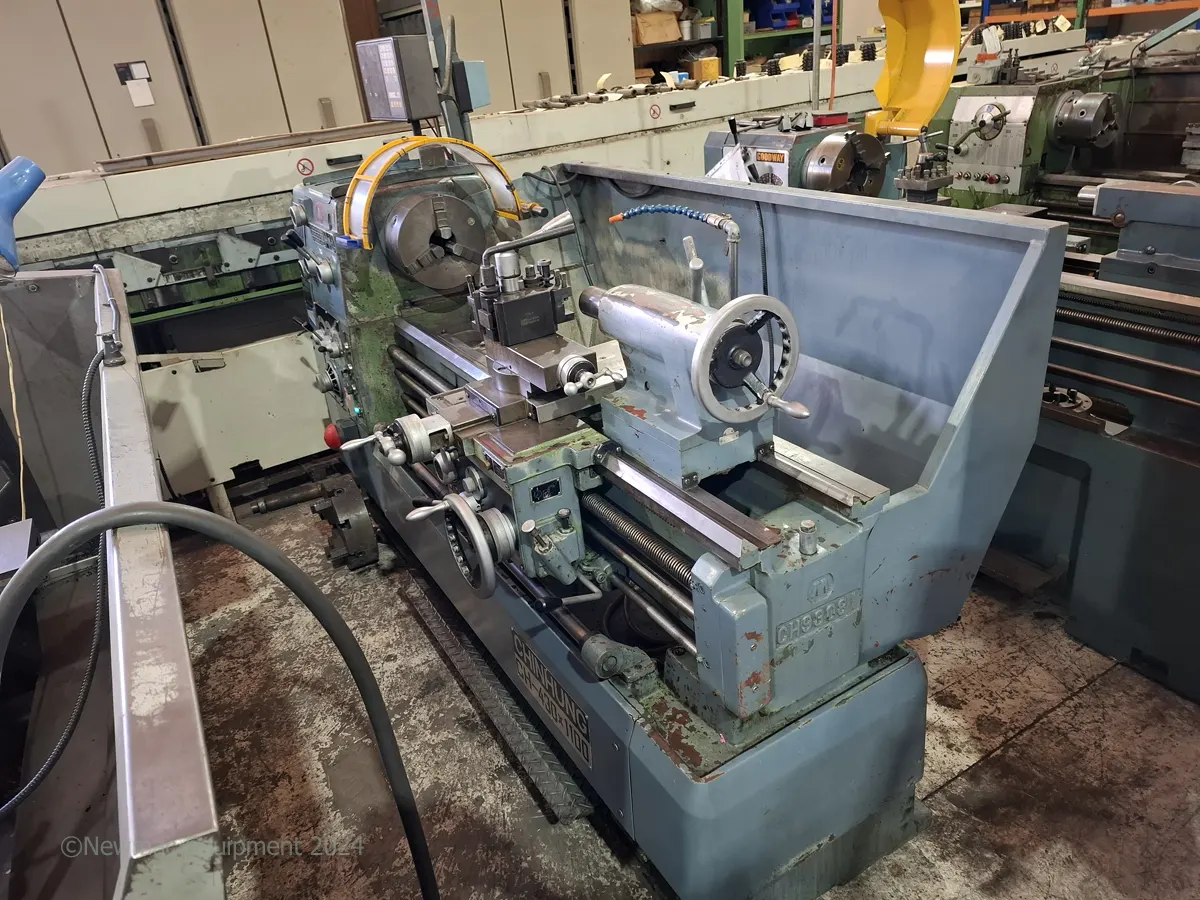

We have an Ex TAFE, Good used condition, CHINHUNG CH430 X 1100 Centre Lathe for sale. These are high-quality Taiwanese lathes commonly sold under the brand names Ajax & Kingston.
Stock # 4100
Specifications & general information are as follows
- Manufactured in Taiwan

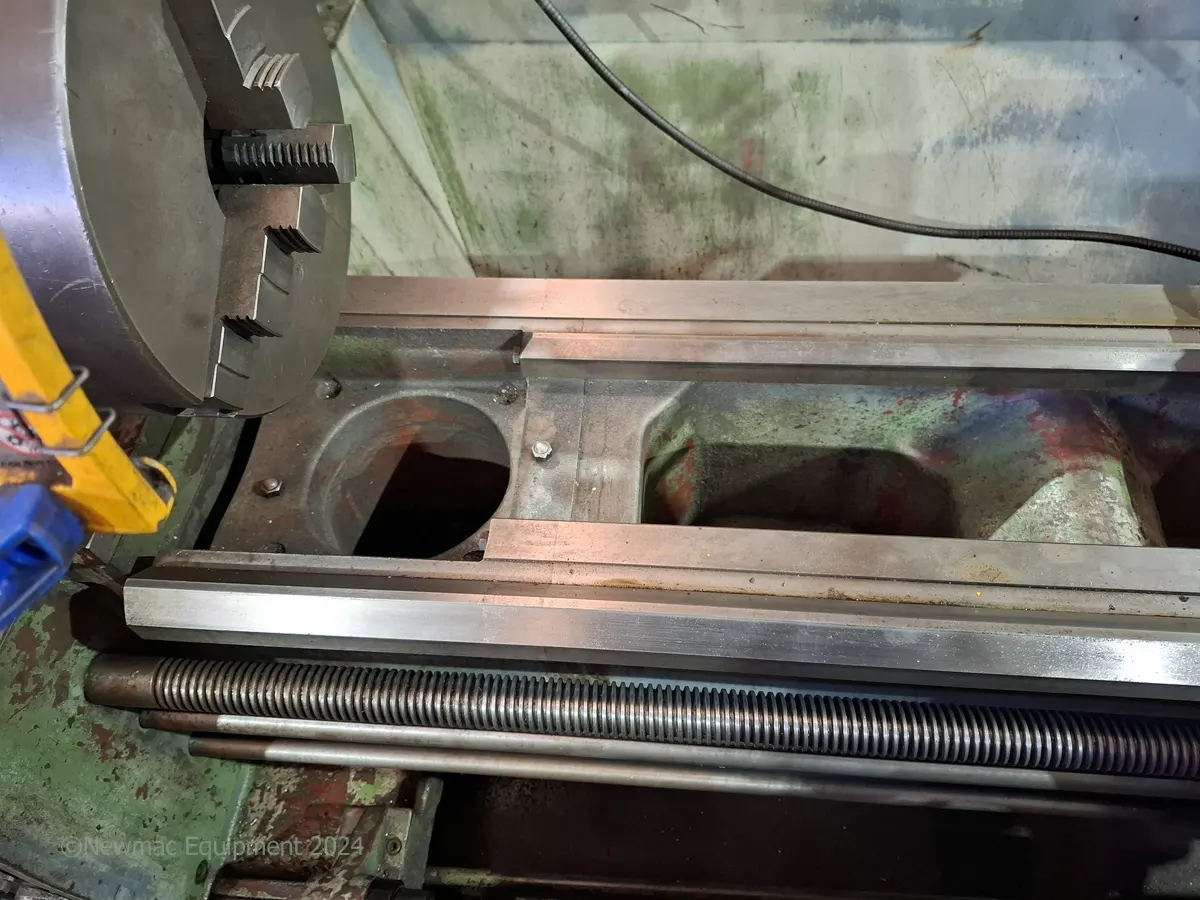

- Features gap bed
- Swing Over Bed 432mm
- Swing Over Saddle 268mm
- Swing in Gap 610mm
- Distance Between centres 1100mm
- Spindle Bore 58mm
- Spindle mount Camlock D1-6

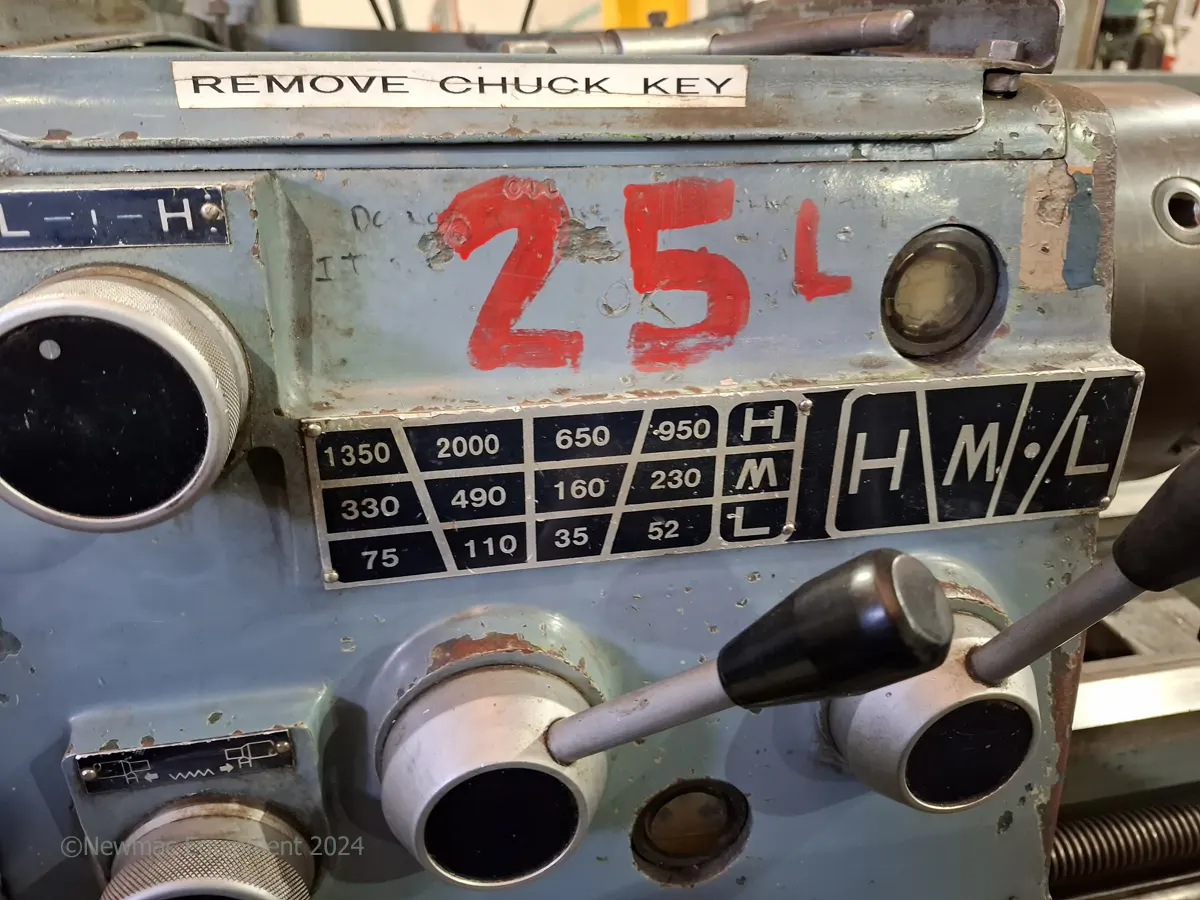

- Spindle Speeds 12 speeds, 35 to 2000 rpm
- Motor Hp/Kw 7.5hp/5kw
- Power requirements 3 phase, 415 volt
- Overall dimensions 2.25m x 1050mm x 1.7m high
- Net weight 1.6 tons

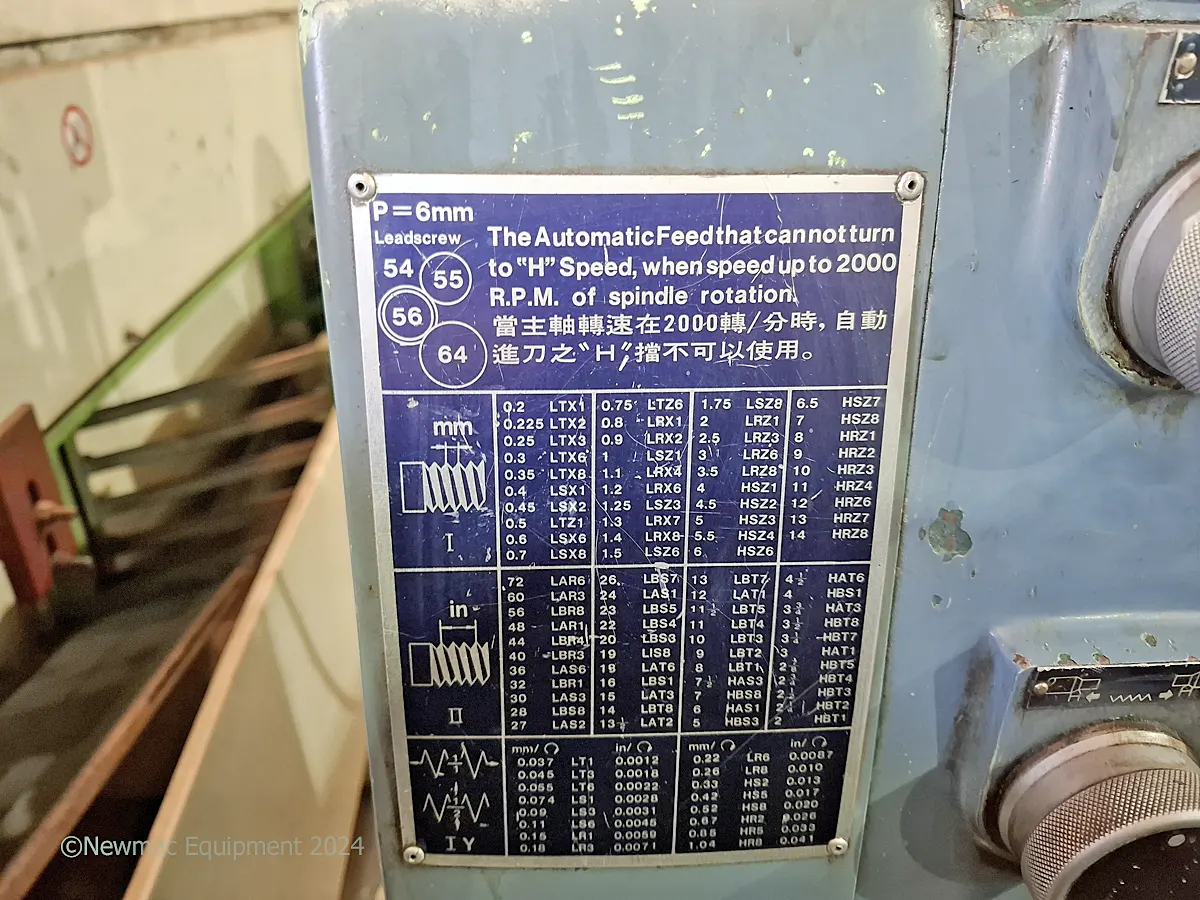

- This lathe features a metric lead screw & dials
Accessories/Features
- 3 Jaw chuck
- 4 Jaw chuck
- Dog plate for turning between centre

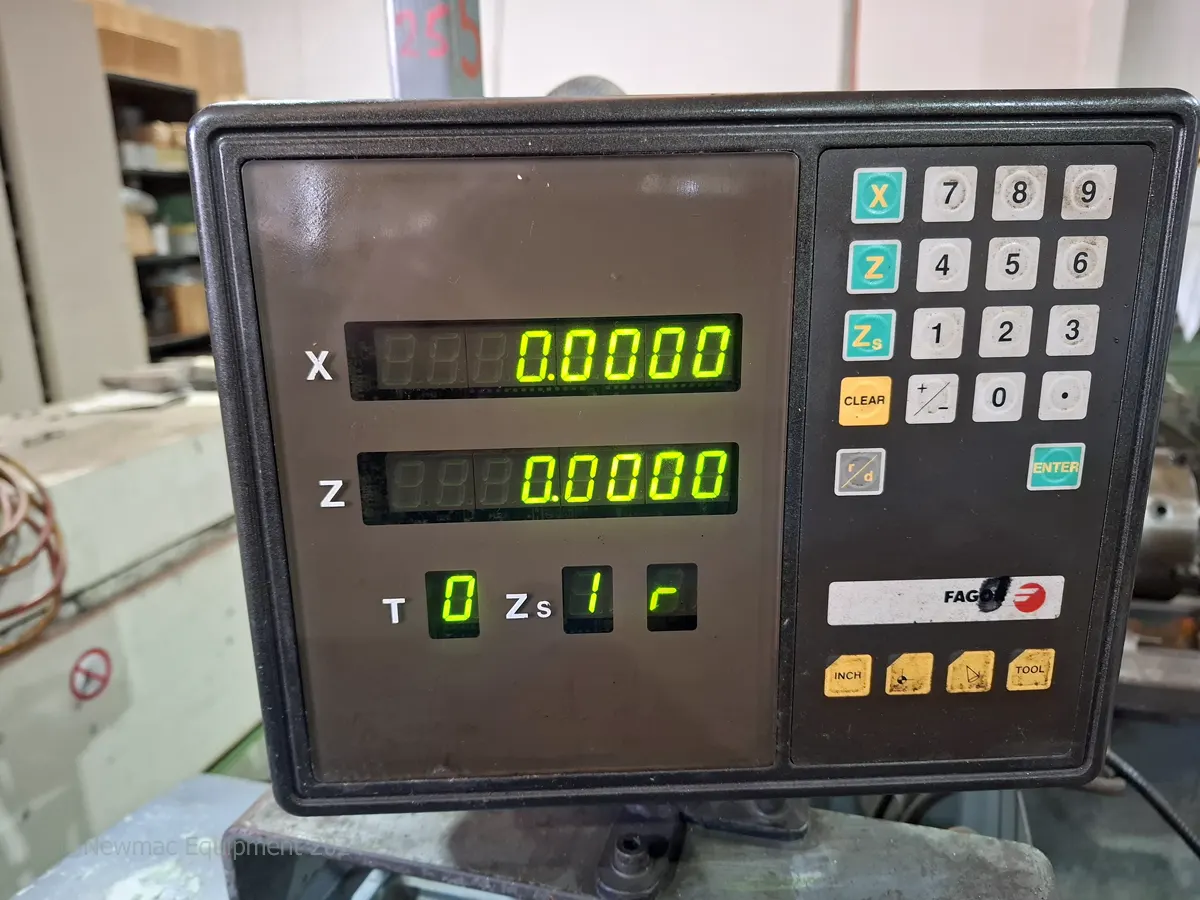

- Fagor 2-axis digital readout (checked & working)

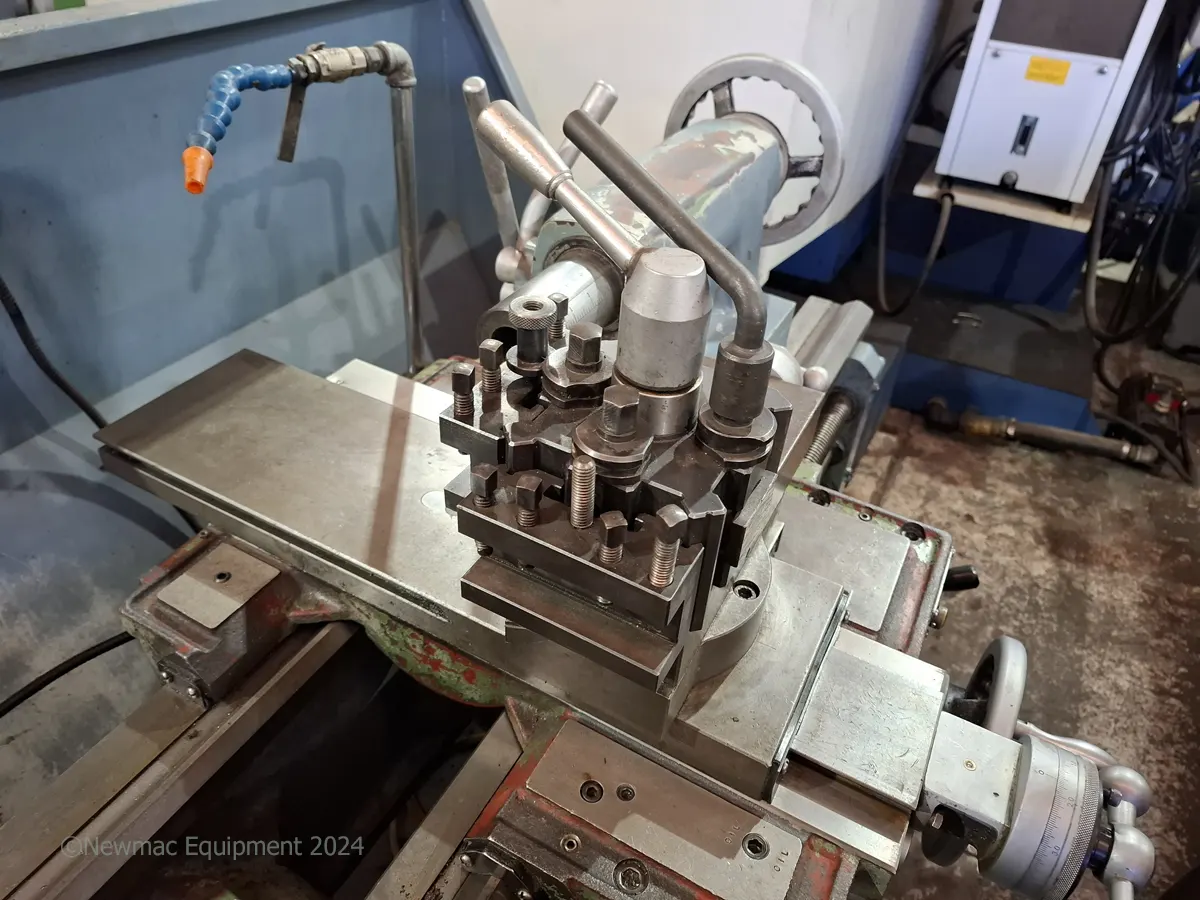

- Quick change tool post
- Foot brake (checked & working)
- Coolant system (can be heard running)
- Interlocked chuck guard
Click here for additional information & price (will open a pdf in a new tab)
We have run this machine. & all works well.
We recommend customers visit our warehouse to inspect the machinery in person. Our team is more than happy to offer to test run the equipment to give you the peace of mind that it will perform to your requirements before making a purchase. That way, you can make an informed decision and feel confident in your investment.
Considering selling your machinery? We buy as well as sell machinery. Downsizing, relocating, closing down, or having surplus equipment. We are always on the lookout for quality machinery to buy. Please do not hesitate to contact us to discuss your machinery needs and how we can help you.
We would like to extend a note to all prospective customers. We are happy to provide details of freight companies that transport machines anywhere in Australia or worldwide. However, we want to remind customers that the machines are not insured during transport by either the transport companies or Newmac Equipment. We strongly advise that customers speak with their usual insurance company to take out transport insurance.
Slide show below can be paused by hovering the mouse cursor over the current photo. It will resume when the cursor is moved off the photo
